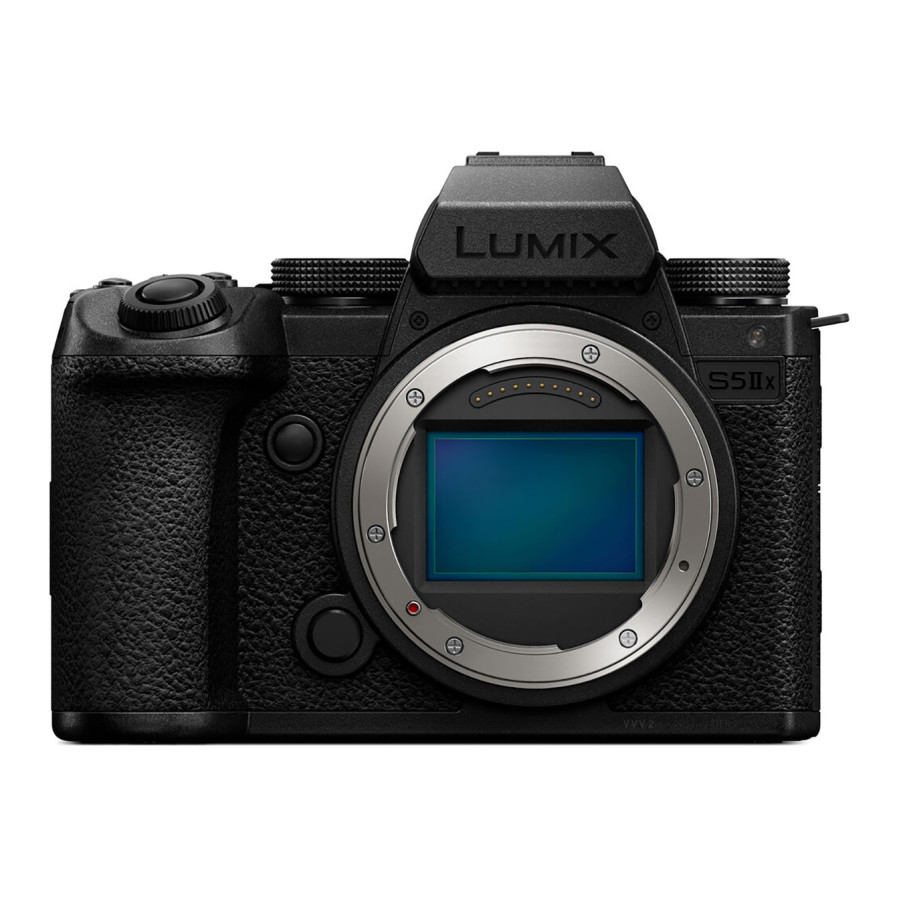

he second-generation Panasonic Lumix S5 II Mirrorless Camera is equipped with a host of new features to bring your vision to life. Benefitting from a new sensor design and an updated processing engine with L2 technology, the S5 II is the first Lumix camera to offer Phase Hybrid AF for fast and precise autofocusing performance. Making full use of the 24.2MP sensor and enhanced processor, this camera records 6K video for up to 30 minutes, while unlimited 4K video capture is available as well. Optimized for video, the S5 II is also equipped with a new Active I.S. system, which supports walking shots to further enhance image stabilization while recording
Imaging
Lens Mount
L-Mount
Sensor Resolution
Actual: 25.28 Megapixel
Effective: 24.2 Megapixel (6000 x 4000)
Image Sensor
35.6 x 23.8 mm (Full-Frame) CMOS
Sensor Crop (35mm Equivalent)
Crop Factor: 1x
Additional Modes: 1.5x
*Additional Crop Occurs in Select Video Modes
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
Electronic Shutter
1/8000 to 60 Seconds
Electronic Front Curtain Shutter
1/2000 to 60 Seconds
Mechanical Shutter
1/8000 to 60 Seconds
Bulb/Time Mode
Bulb & Time Mode (Up to 30 Minutes)
ISO Sensitivity Range
Photo/Video
100 to 51,200 (Extended: 50 to 204,800)
Metering Method
Center-Weighted Average, Highlight Weighted, Multiple, Spot
Exposure Modes
Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation
-5 to +5 EV (1/3 EV Steps)
Metering Range
0 to 18 EV
White Balance
2500 to 10,000K
Presets: AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
Continuous Shooting
Up to 30 fps at Maximum Resolution for up to 200 Frames (JPEG, Raw)
Interval Recording
Yes
Self-Timer
2/10-Second Delay
Still Image Capture
Aspect Ratio
1:1, 2:1, 3:2, 4:3, 16:9, 65:24
Image File Format
JPEG, Raw
Bit Depth
14-Bit
Video Capture
Internal Recording Modes
H.264/H.265/MOV/MPEG-4 AVC 4:2:2/4:2:0 8/10-Bit
5952 x 3968 at 23.98/24.00/25/29.97 fps [200 Mb/s]
5888 x 3312 at 23.98/24.00/25/29.97 fps [200 Mb/s]
5952 x 3136 at 23.98/24.00/25/29.97 fps [200 Mb/s]
4096 x 2160 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps [150 to 200 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps [150 to 200 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/100 fps [20 to 150 Mb/s]
External Recording Modes
12-Bit via HDMI
5888 x 3312 at 23.98/25/29.97 fps
Fast-/Slow-Motion Support
Yes
Gamma Curve
Panasonic V-Gamut, V-Log
Recording Limit
No
IP Streaming
No
Built-In Microphone
Stereo
Audio Recording
MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
MP4: 2-Channel 16-Bit 48 kHz AAC Audio
Interface
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-II)
Video I/O
1x HDMI Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O
1x USB-C Input/Output
Other I/O
1x USB-C Data Input/Output (Shared with Power Input)
Wireless
Bluetooth 5.0
2.4 / 5 GHz Wi-Fi 5 (802.11ac)
Mobile App Compatible
Yes: Android & iOS
App Name: Lumix Sync
Functionality: Access Stored Files, Firmware Update, Remote Control
Global Positioning (GPS, GLONASS, etc.)
GPS
*Via Connected Smartphone
Monitor
Display Size
3"
Resolution
1,840,000 Dot
Display Type
Free-Angle Tilting Touchscreen LCD
Viewfinder
Type
Electronic (OLED)
Resolution
3,680,000 Dot
Eye Point
21 mm
Coverage
100%
Magnification
Approx. 0.78x
Diopter Adjustment
-4 to +2
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points
Photo, Video
Contrast Detection, Phase Detection: 779
Autofocus Sensitivity
-6 to +18 EV
Flash
Built-In Flash/Light
No
Flash Modes
Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
Maximum Sync Speed
1/250 Second
Flash Compensation
-3 to +3 EV (1/3 EV Steps)
Dedicated Flash System
TTL
External Flash Connection
Shoe Mount
General
Battery
1x Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Included)
• Approx. 370 Shots
Shoe Mount
1x Hot Shoe
Tripod Mounting Thread
1x 1/4"-20 Female (Bottom)
Material of Construction
Magnesium Alloy
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 80% Humidity
Dimensions (W x H x D)
5.29 x 4.03 x 3.55" / 13.44 x 10.24 x 9.02 cm (Without Protrusions)
Weight
1.45 lb / 658 g (Body Only)
1.64 lb / 744 g (With Recording Media)
Packaging Info
Package Weight
2.65 lb
Box Dimensions (LxWxH)
13.4 x 7.4 x 6.6"
