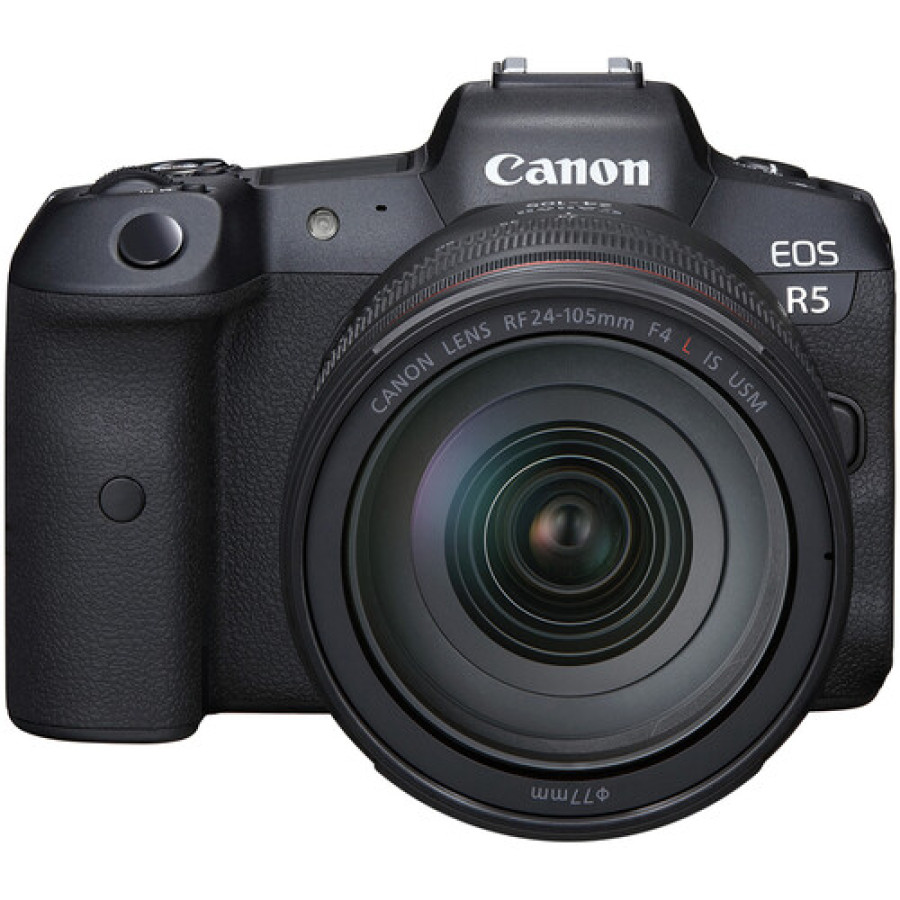

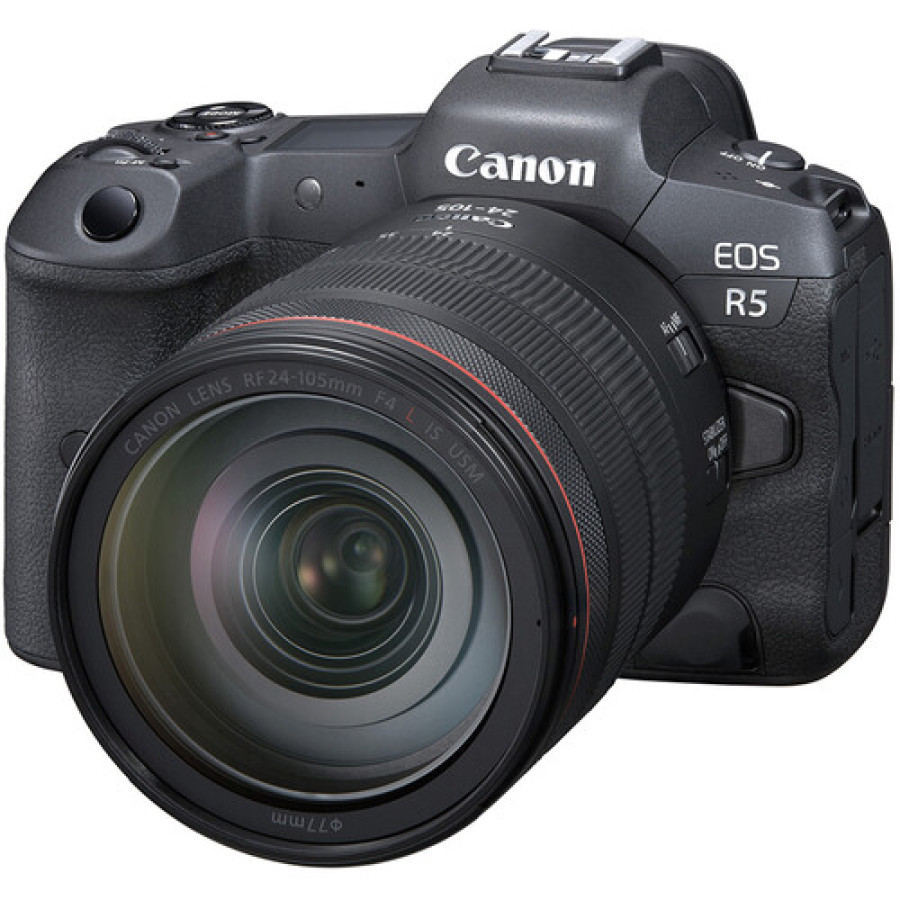

For the professional image-maker who needs resolution, speed, and video capabilities, the Canon EOS R5 full-frame mirrorless camera features a newly developed 45MP CMOS sensor, which offers 8K raw video recording, 12 fps continuous shooting with a mechanical shutter, and is the first EOS camera to feature 5-axis sensor-shift image stabilization.

Imaging
Lens Mount
Canon RF
Sensor Resolution
Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464)
Image Sensor
36 x 24 mm (Full-Frame) CMOS
Sensor Crop (35mm Equivalent)
Crop Factor: 1x
Additional Modes: 1.6x
*Additional Crop Occurs in Select Video Modes
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
Electronic Shutter
1/8000 to 1/2 Second
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Mechanical Shutter
1/8000 to 30 Seconds
Bulb/Time Mode
Bulb Mode
ISO/Gain Sensitivity
Native: 100 to 51,200 (50 to 102,400 Extended)
Video
Native: 100 to 25,600 (100 to 51,200 Extended)
Metering Method
Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes
Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range
-3 to 20 EV
White Balance
2000 to 10,000K
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting
Up to 20 fps at Maximum Resolution for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording
Yes
Self-Timer
2/10-Second Delay
Still Image Capture
Aspect Ratio
1:1, 3:2, 4:3, 16:9
Image File Format
JPEG, Raw
Bit Depth
14-Bit
Video Capture
Internal Recording
Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s]
H.264 4:2:0 8-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [120 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s]
H.265 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [170 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s]
Video Output
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps
ProResRAW 10-Bit via HDMI
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps
5088 x 2680 at 23.98/24.00/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support
Yes
Gamma Curve
Canon Log, Canon Log 3
Recording Limit
30-Minute Maximum
IP Streaming
Yes
Built-In Microphone
Stereo
Audio Recording
AAC Audio
LPCM Audio
Interface
Media/Memory Card Slot
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O
1x Micro-HDMI Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O
1x USB-C Input
Other I/O
1x Canon N3 Remote Input
1x PC Flash Sync Output
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control
Mobile App Compatible
Yes: Android & iOS
App Name: Canon Camera Connect
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)
GPS
*Via Connected Smartphone
Monitor
Display Size
3.2"
Resolution
2,100,000 Dot
Display Type
Free-Angle Tilting Touchscreen LCD
Secondary Display
Top: Status Display
Viewfinder
Type
Electronic (OLED)
Size
0.5"
Resolution
5,760,000 Dot
Eye Point
23 mm
Coverage
100%
Magnification
Approx. 0.76x
Diopter Adjustment
-4 to +2
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points
Phase Detection: 1053
Autofocus Sensitivity
-6 to +20 EV
Flash
Built-In Flash/Light
No
Maximum Sync Speed
1/250 Second
Flash Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System
eTTL
External Flash Connection
PC Terminal
General
Battery
1x LP-E6NH Rechargeable Lithium-Ion (Included)
Shoe Mount
1x Hot Shoe
Tripod Mounting Thread
1x 1/4"-20 Female (Bottom)
Material of Construction
Magnesium Alloy
Operating Conditions
32 to 104°F / 0 to 40°C up to 85% Humidity
Dimensions (W x H x D)
5.43 x 3.84 x 3.46" / 138 x 97.5 x 88 mm
Weight
1.4 lb / 650 g (Body Only)
1.6 lb / 738 g (With Battery, Recording Media)
Packaging Info
Package Weight
3.045 lb
Box Dimensions (LxWxH)
11 x 9.4 x 6.1"
